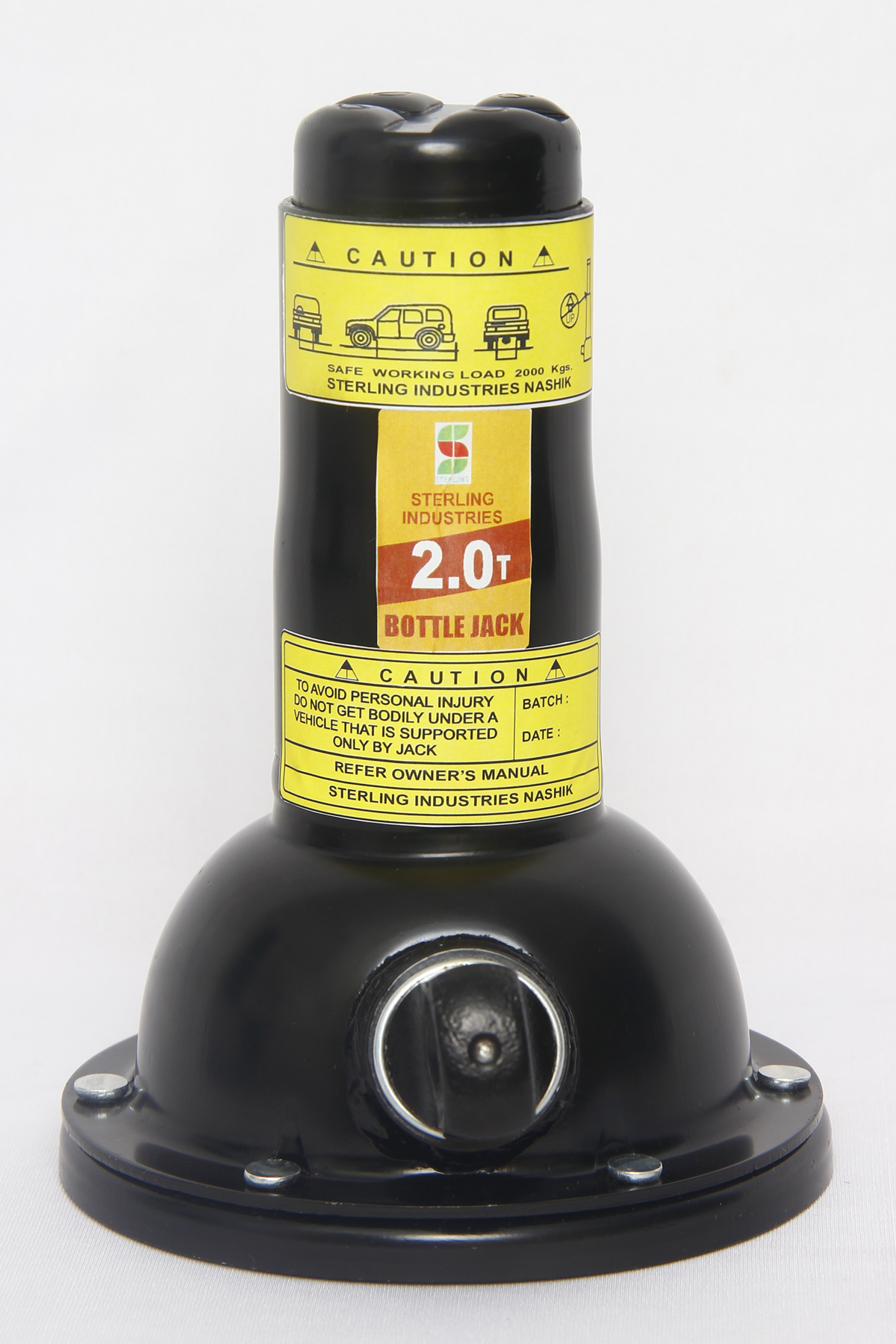

Screw Jack

A powerful heavy duty mechanical screw jack, ideal for use in Automotive, Construction and Industrial applications. Welded Steel: Welded steel construction body, reduces metal fatigue, provides long life. Innovative Design: Unique design, offers increased stability and safety. Reduced Friction: Screw mechanism rotates on ball thrust bearing. Positive Drive: No slippage. Safety: Jack is pre-tested to 120% of its rated capacity. Universal use: Can be used in any angle: Upright, Angle & Horizontal position. Range: 1.2 Ton to 5.0 Tons

Truck Suspension Equalizer

This is a typical Truck Suspension Equalizer used with Truck Leaf springs. The rubber cores help allow absorb road shock and provide a smooth ride. This Truck Suspension Equalizer is made out of heavy duty steel plates, press formed in tooling, high accuracy welded and surface coated to provide years of trouble free operation and service. These Truck Suspension Equalizer improve the load carrying ability of Trucks and provide improved fuel economy, safety, power, reduced tire wear and improved braking. They are generally used in Tandem axle trailers with double eye leaf springs. Axle capacity: 2000 Kgs ~ 3000 Kgs.

Truck Rear Axle - Sectional

This Truck Rear Axle - Sectional view is provided to give a glimpse of how the load carrying ability and components are utilized in heavy duty truck applications. A Torque arm is a forged metal attached between drive axle and vehicle frame or chassis. Torque arms prevent axle rotation. Torque arms prevents the wheel from trying to rotate the axle with respect to the vehicle chassis, when heavy acceleration is applied or when heavy braking force is applied. A walking beam is also used which is a forged oscillating lever pivoting on one central axis and uses internal cam technology which helps it to transmit force applied linearly in 2 directions.
